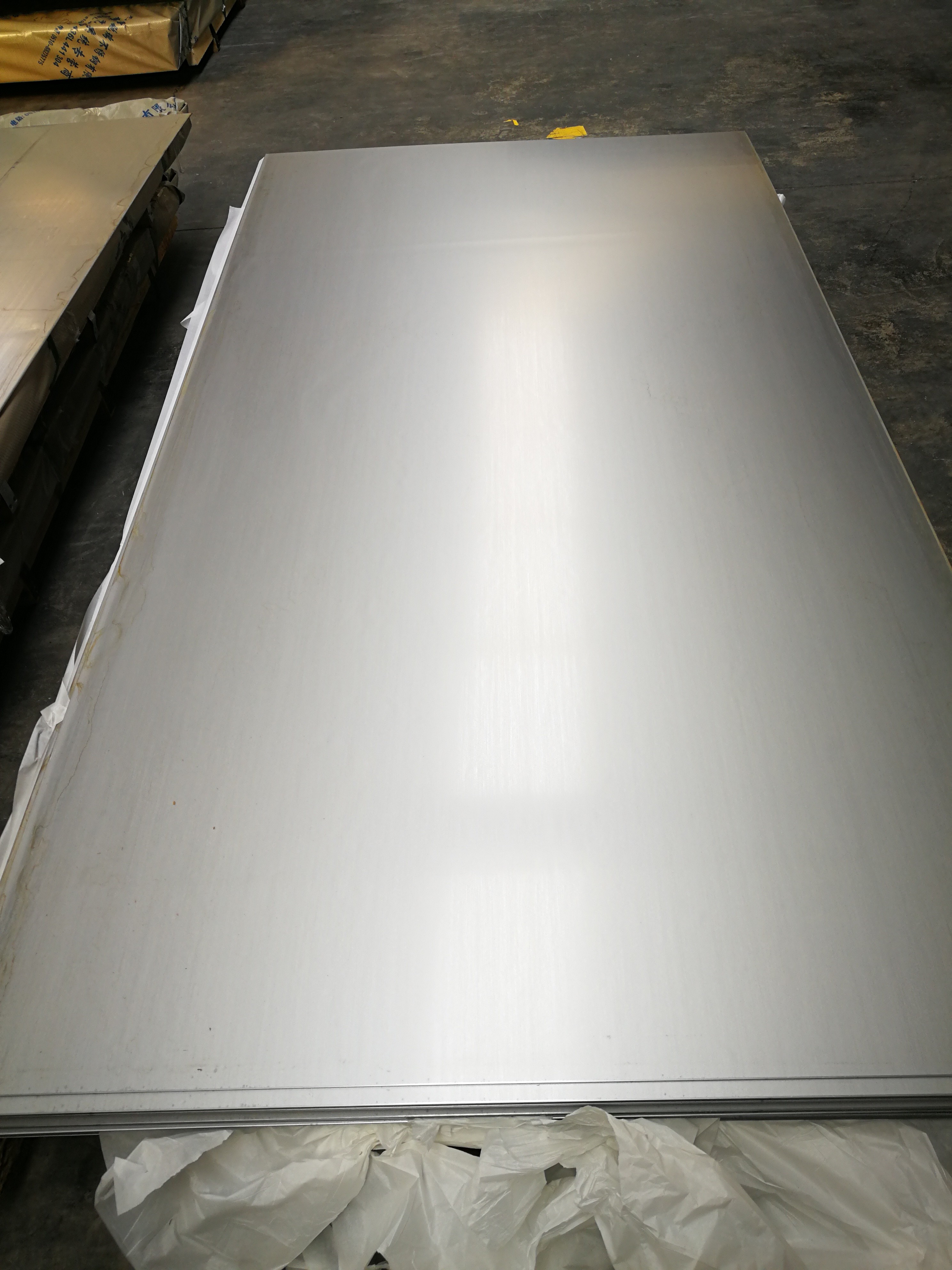

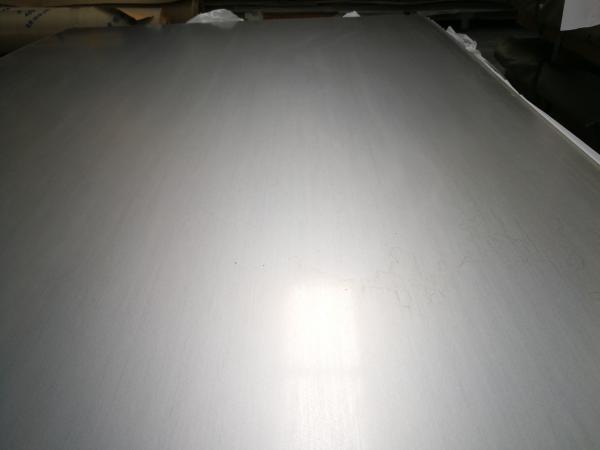

SUS436L Stainless Steel Sheet 2D UNS S43600 , 0.5 - 3mm Inox Sheet For Car Mould
Stainless steel
AISI 436 Stainless Steel
| Designations | United States: SAE 51436 , SAE J405 (51436) , UNS S43600 |
Chemical Composition
| Element | Weight % |
| C | 0.12 |
| Mn | 1.00 |
| Si | 1.00 |
| Cr | 16.0-18.0 |
| P | 0.04 |
| S | 0.03 |
| Mo | 0.75-1.25 |
| Nb+Ta | 0.6 |
Mechanical Properties
| Properties | Conditions |
| T (°C) | Treatment |
| Density (×1000 kg/m3) | 7.8 | 25 | |
| Poisson's Ratio | 0.27-0.30 | 25 | |
| Elastic Modulus (GPa) | 200 | 25 | |
| Tensile Strength (Mpa) | 530 | 25 | annealed (sheet, strip) |
| Yield Strength (Mpa) | 365 |
| Elongation (%) | 23 |
| Reduction in Area (%) | |
| Hardness (HRB) | 83 (max) | 25 | annealed (sheet, strip) |
Thermal Properties
| Properties | Conditions |
| T (°C) | Treatment |
| Thermal Expansion (10-6/ºC) | 9.3 | 0-100 | |
| Thermal Conductivity (W/m-K) | 23.9 | 100 more | |
| Specific Heat (J/kg-K) | 460 | 0-100 | |
Electric Properties
| Properties | Conditions |
| T (°C) | Treatment |
| Electric Resistivity (10-9W-m) | 600 | 25 | |
Product description:
Step ShaftAISI 436 Tube AISI 436 Pie-shaped AISI 436 Ring AISI 436 Module Large valves of the main AISI 436 Other Profiled forgings AISI 436
Special Steel classification:
Stainless steel, Hi-Steel HSLA-80, Mould steel, Heat resistant steel, Tool steel, Ball bearing steel,Spring steel, Alloy steel, Construction steel, Die steel, High-speed steel, angles, channels, H steel, I-beams, welded pipes, seamless tubes,
Standard:
Our products meet Chinese GB, Japanese JIS, US ASTM, UK BS, EU DIN standards and so on.
Our advantages:
Our advantages such as advanced management and operation concepts, suitable work facilities, highly qualified talents and a number of trade partners who have long-term and close cooperation with us have ensured us to provide global customers with competitive high-quality commodities and excellent services, quickly, accurately, conveniently and completely.
Products Introduction:
Specifications
Round bar:
Diameter : 1mm-2000mm
Square bar:
Size: 50mm * 50mm-600mm *600mm
Plate steel/flat bar:
Size: Thickness: 0.1mm-800mm Width: 10mm to 1500mm
Tube/pipe:
Size: OD: 6-219mm WT: 1-35 mm.
Cold-rolled sheet: Thickness: 2-5mm Width:1000mm Length: 2000mm
Hot-rolled sheet: Thickness:6-80mm Width: 210-610mm
Length: We can supply any length based on the customer's requirement.
Forging/hot rolling/ extrusion of steel.
Forging: Shafts with flanks/pipes/tubes/slugs/donuts/cubes/other shapes
Finished goods condition: hot forging/hot rolling + annealing/normalizing + tempering/quenching + tempering/any conditions based on the customer's requirement
Surface conditions: scaled (hot working finish)/ground/rough machining/fine machining/based on the customer's requirement
Furnaces for metallurgical processing: electrode arc + LF/VD/VOD/ESR/Vacuum consumable electrode.
Ultrasonic inspection: 100% ultrasonic inspection for any inperfections or based on the customer's requirement
Excellent service for all kinds of industries, with advantages of technologies, equipment and price.
We serve you with our honesty, integrity, and professionality.
