Stainless steel plate 309S.ASTM 904L stainless steel plate.ASTM 317L stainless steel plate
Quick Detail
Stainless Steel Sheet ( AISI ,ASTM , JIS , SUS , EN )
As a lead manufacturer and supplier of steel sheet stainless steel sheet, steel plate stainless steel plate etc, our products such as stainless steel 201, 202 , 301 , 303 , 304 , 304L , 304H , 309, 309S , 309Nb ,310 , 310S , 310L , 310H , Uranus 65 , 310H , 314, 316, 316L, 316Ti, 317, 317L, 321, 347, 347H , 409L , 420 , 420J1 , 420J2 , 430 , 431,434 , 436L , 439 , 441, 443 , 444 , 904L , 2205 , 2304 , 2507 , 253MA , 254Mo , 631 , 654MO ,17-7pH ,N08367 (AL 6XN ) sheet plate are always available on stock. For cold rolled stainless steel sheet, thickness range from 0.3mm - 8.0mm, for hot rolled stainless steel plates, thickness range from 3.0-100mm.
We have bulit strategetic partnership with TISCO, POSCO, BAOSTEEL, JISCO LISCO several years. Customers shouldn't have concern with our products, product could endure time.

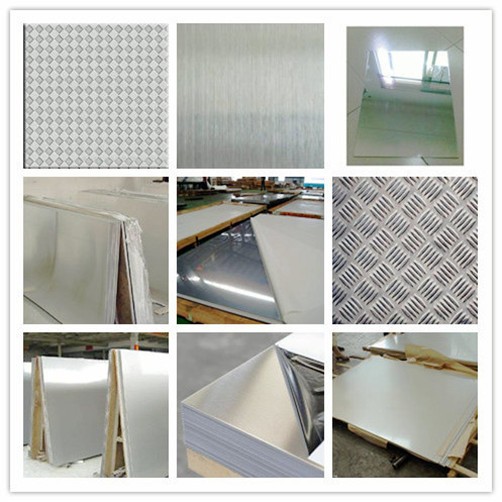

surface details
| urface finish | Characteristics and application |
| NO.2B | The surface brightness and flatness of no2B is better than no2D. then through a special surface treatment to improve its mechanical properties,No2B could nearly satisfy comprehensive uses. |
| NO.3 | Polished with abrasive belt of git#100-#200, have better brightness with discontinuous coarse stria, used as inner and external ornaments for building, electrical appliances and kitchen utensils etc. |
| NO.4 | Polished with abrasive belt of grit #150-#180,have better brightness with discontinuous coarse stria,but thinner than No3, are used as bathtub buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc. |
| HL | Polished with abrasive belt of grit #150-#320 on the NO.4 finish and has continuous streaks, mainly used as buildings ornaments elevators,door of building, frontal plate etc. |
| BA | Cold rolled, bright annealed and skin-passed, the product have excellent brightness and good reflexivity like mirror,kitchen apparatus,ornament etc. |
| 8K | The product have excellent brightness and prefer reflexivity can to be the mirror. |
Our Products
Chemical Compostion of 317L
| C | Si | Mn | P | S | Cr | Ni | Mo |
| <=0.03 | <=1.00 | <=2.00 | <=0.045 | <=0.03 | 16.00-18.00 | 11.00-15.00 | 3.0-4.0 |
Mechanical properties
| YS(Mpa) | TS(Mpa) | EL(％) | Hv |
| ≥176, | ≥480, | ≥40, | ≤200 |
Density(g/cm3) : 7.98
Our Capacity:
About us:strong technical force, complete product material specification
Specialize in :stainless steel pipe,stainless steel elbow,stainless steel pipe fitting
Main market:northern Europe, Western Europe, Mid East, Southeast Asia, South America
Management idea:do as good as our words, honesty, win-win, quality rooted, service supreme
